Operation image

Pneumatic-Hydraulic Conversion Booster

　　　　　
Rush Booster

It will introduce operation and air circuit examples of the Rush Booster.
Click on each image to see operation image.

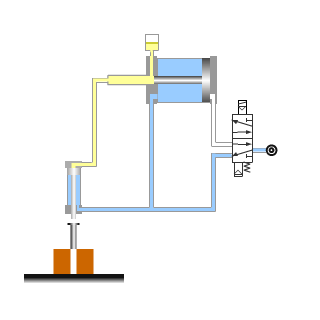

Basic action
Basic action of Rush Booster 1
This is the standard operation with one solenoid valves.

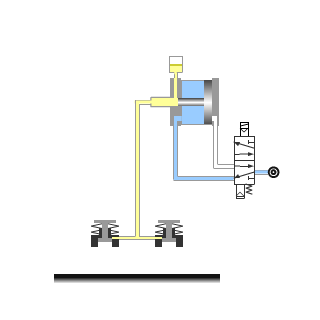

Unclamp of single acting clamper
Unclamp of Rush Booster 1
Used as a hydraulic power source for opening a single acting clamper.

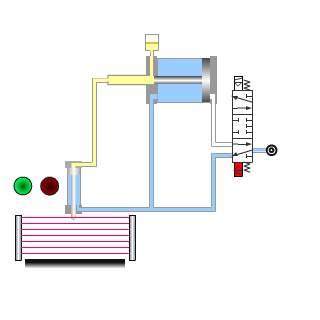

Emergency stop
Emergency stop of Rush Booster 1
Emergency stop using closed center type pneumatic solenoid valve.
　　　　　

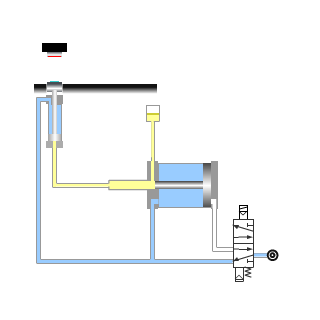

Installation in a low position
Low position of Rush Booster 1
Installation at a lower position than the actuator.

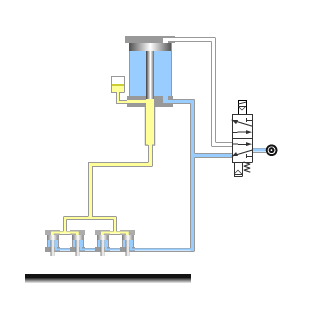

Vertical installation
Vertical installation of Rush Booster 1
Installation the Rush Booster vertically.

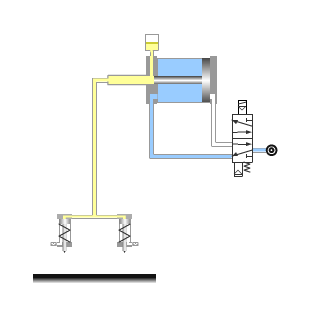

Pushing side of single acting cylinder
Pushing side of Rush Booster 1
Used as a hydraulic power source for pushing side of single acting cylinder.
