Operation image

Pneumatic-Hydraulic Conversion Booster

　　　　　
Pneumatic Booster

It will introduce operation and air circuit examples of the Pneumatic Booster.
Click on each image to see operation image.

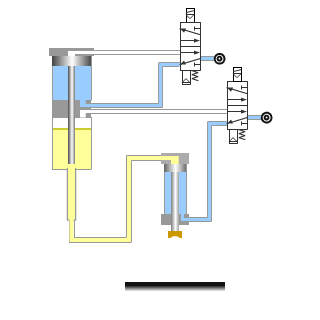

Basic action
Basic action of Pneumatic Booster 1
This is the standard operation with two solenoid valves.

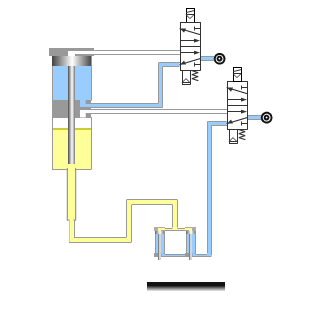

Control multiple actuators
Clamping of Pneumatic Booster 1
Control multiple actuators with one Pneumatic Booster.

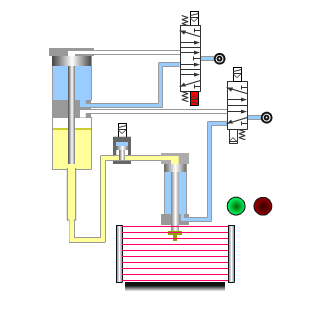

Emergency stop
Emergency stop of Pneumatic Booster 1
Securing safety by sudden stop at the time of emergency stop.
　　　　　

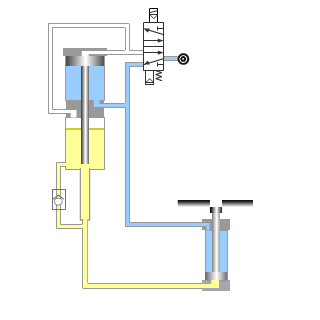

High thrust feed at start
Knockout of Pneumatic Booster 1
Push out with fast feed after high thrust feed.
Switching of working cylinder
Switching cylinder of Pneumatic Booster 1
Multiple actuators can be controlled separately by switching hydraulic circuits.
Quality judgement using low thrust
Quality judgement of Pneumatic Booster 1
The low thrust during fast feed is used for pass/fail judgment.
