Operation image

High Thrust Air Cylinder

　　　　　
Pneumatic Power Cylinder

It will introduce operation examples of the Pneumatic Power Cylinder.
Click on each image to see operation image.

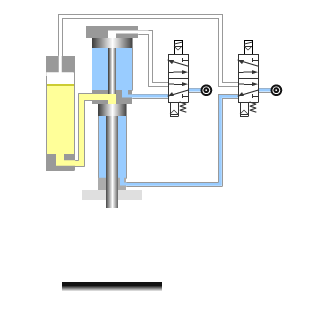

Basic
Basic action of Pneumatic Power Cylinder 1
This is the standard operation with two solenoid valves.

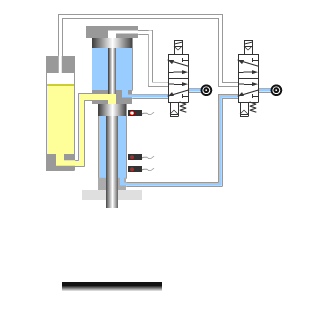

Built-in magnet (with auto switch)
Built-in magnet type of Pneumatic Power Cylinder 1
The solenoid valve is switched by the auto switches output.

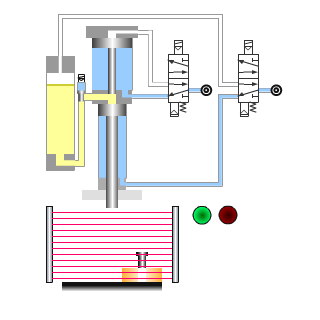

Emergency stop
Emergency stop of Pneumatic Power Cylinder 1
Securing safety by sudden stop at the time of emergency stop.
　　　　　

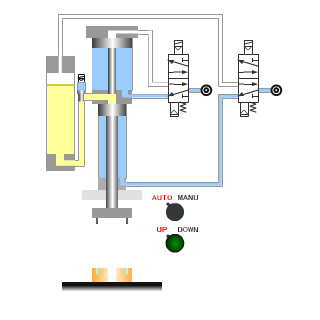

Inching (Positioning)
Inching of Pneumatic Power Cylinder 1
Inching motion when aligning molds and workpieces.

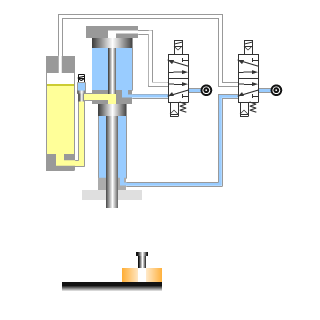

Repeated high thrust stroke operation.
Repetitive action of high thrust operation of Pneumatic Power Cylinder 1
Repeated high thrust operations to shorten cycle time.

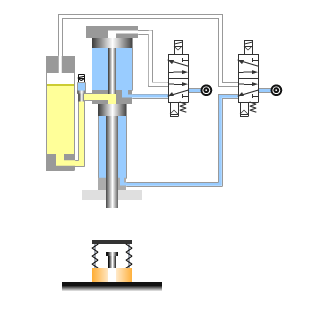

Switching of the top dead center (Change stroke)
Changing of top dead center of Pneumatic Power Cylinder 1
Switch between top dead center during continuous operation and top dead center during mold replacement and maintenance.
　　　　　

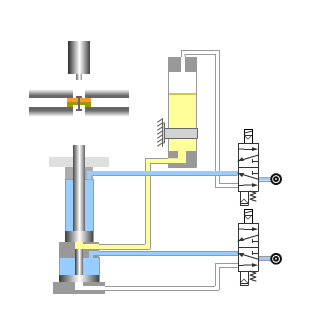

Usage with piston rod facing upward
Inching of Pneumatic Power Cylinder 1
The direction of high thrust is upward.

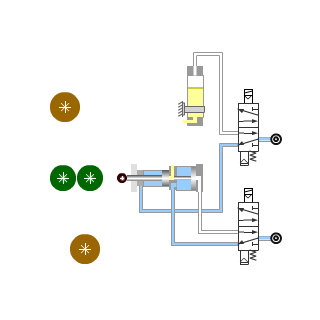

Usage the piston rod sideways
Repetitive action of high thrust operation of Pneumatic Power Cylinder 1
The direction of high thrust is sideways.
Adjustment of the high thrust
Changing of top dead center of Pneumatic Power Cylinder 1
Adjust cylinder thrust by adjusting air pressure.
