| Type |
Reference values for direct input
When you will calculate a composite effective cross-sectional area
(Hydraulic piping), include the following orifice cross-sectional area
in a calculation.
Pneumatic Booster Orifice cross-sectional area (cm2)
PB-50 0.12
PB-100 0.38
PB-160 1.76
PB-200 3.14
PB-300 3.14
When you will calculate a quantity of oil in hydraulic piping,
include the following a quantity of oil in a calculation.
Type Symbol of high thrust Quantity of oil(ml)
feed oil capacity
PB-50-****-23 05 26
PB-50-****-23 10 39
PB-50-****-23 15 52
PB-50-****-23 20 64
PB-50-****-23 25 77
PB-100-****-16 05 51
PB-100-****-16 10 78
PB-100-****-16 15 104
PB-100-****-16 20 131
PB-100-****-16 25 157
PB-100-****-28 05 43
PB-100-****-28 10 60
PB-100-****-28 15 77
PB-100-****-28 20 95
PB-100-****-28 25 112
PB-160-****-16 05 162
PB-160-****-16 10 231
PB-160-****-16 15 300
PB-160-****-16 20 370
PB-160-****-16 25 439
PB-160-****-28 05 120
PB-160-****-28 10 163
PB-160-****-28 15 206
PB-160-****-28 20 249
PB-160-****-28 25 291
PB-200-****-25 05 227
PB-200-****-25 10 298
PB-200-****-25 15 369
PB-200-****-25 20 441
PB-200-****-25 25 512
PB-300-****-29 05 349
PB-300-****-29 10 490
PB-300-****-29 15 632
PB-300-****-29 20 773
PB-300-****-29 25 914
|

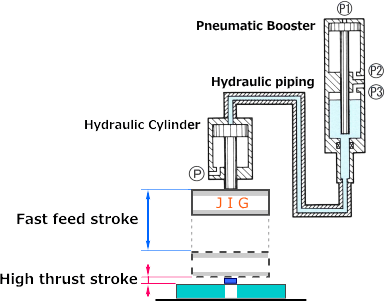

| Type |
|
| Symbol of Fast feed oil capacity |
|
| Symbol of High thrust feed oil capacity |
|
| Hydraulic Cylinder |
| Type |
|
| Stroke |
mm |
| Condition |
| Installation direction of hydraulic cylinder |
|
| Air pressure of fast feed and return |
MPa |
| Air pressure of high thrust feed and return |
MPa |
| Real fast feed stroke |
mm |
| Real high thrust stroke |
mm |
| Composite effective cross-sectional area (The side of fast feed) |
cm2 |
| Composite effective cross-sectional area (P1) |
cm2 |
| Composite effective cross-sectional area (P2) |
cm2 |
| Composite effective cross-sectional area (Hydraulic piping) |
Direct input cm2
Input the table below |
| Quantity of oil in the hydraulic piping |
Direct input ml
Input the table below |
| Oil loss by the expansion in hydraulic piping |
ml |
| Friction coefficient |
|
| Weight of JIG |
N |
| External force |
N |
| Ambient temperature |
℃ |
| Necessary high thrust |
kN |
|
| Composite effective cross-sectional area (Hydraulic piping), Oil capacity
(The inside of hydraulic piping) |
| Type of hydraulic piping |
|
| The bore of hydraulic piping |
mm |
| The length of hydraulic piping |
mm |
The minimum bore of hydraulic fittings
(The side of Pneumatic Booster) |
mm |
The minimum bore of hydraulic fittings
(The side of hydraulic cylinder) |
mm |
